(DDIC-Based) CDS Views

As a differentiation from CDS View Entities, the classic CDS Views were renamed to DDIC-Based CDS Views.

• Until 7.55 they were the only CDS view type
• Obsolete since 7.57
• SAP uses thousands of them in the Virtual Data Model

Even though they are officially obsolete, they will continue to be used and supported for many decades.

CDS View Entities (2/2)

Usage in Frameworks

Where SQL View names were required for DDIC-based CDS Views, the entity name itself can now be used:

• Extractor Views when creating a DataSource in BW
• Name of CDS InfoProviders or CDS Queries with prefix 2C
• When using the view in AMDP

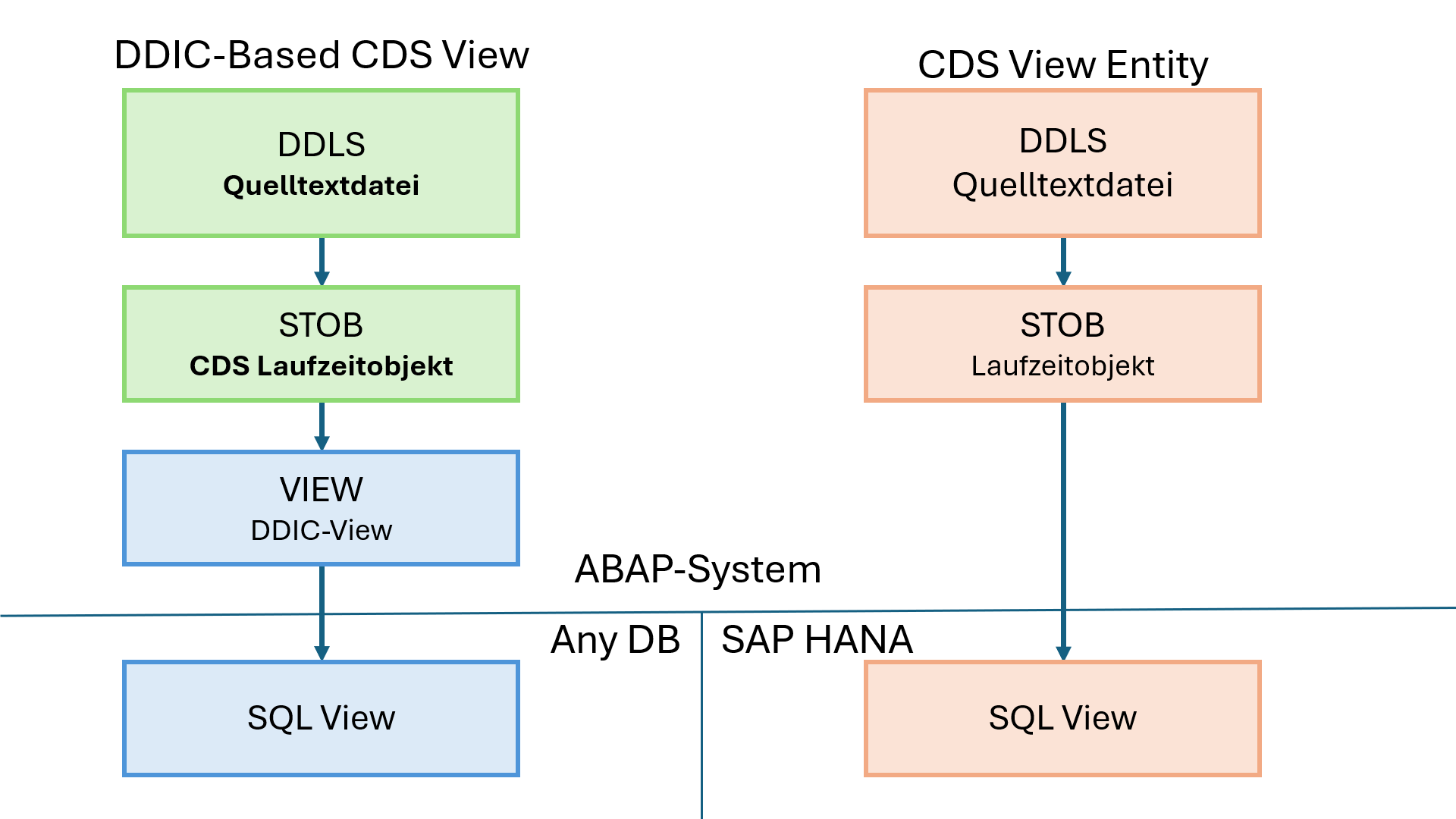

Names of the 3 DDIC-Based CDS View Objects

The DDL file name is normally identical to the CDS view name.
The CDS view can be renamed before first activation — do NOT do this.

Names of CDS View (max 30 chars) and SQL View (max 16 chars) share a namespace → they must differ.

Demo – Creating a DDIC-Based CDS View

Please watch first — do not work along yet.

@AbapCatalog.sqlViewName: 'ZV##_CDS_DEMO'
@AbapCatalog.compiler.compareFilter: true
@AbapCatalog.preserveKey: true
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: 'Demo CDS View'
define view z##_cds_demo
  as select from zbc_tasks as t
{
  key t.task_key    as TaskKey,
      t.summary     as Summary,
      t.status      as Status,
      t.project     as Project,
      t.description as Description,
      t.assignee    as Assignee,
      t.type        as Type,
      t.author      as Author,
      t.due_date    as DueDate,
      t.priority    as Priority
}

Exercise – Create CDS View Entity with Join

@AbapCatalog.viewEnhancementCategory: [#NONE]
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: 'Join '
@ObjectModel.usageType:{
    serviceQuality: #X,
    sizeCategory: #S,
    dataClass: #MIXED
}

define view entity zi_##_tasks_join
  as select from zbc_tasks as t
    left outer join zbc_users as u
      on t.assignee = u.user_id
{
  key t.task_key    as TaskKey,
      t.summary     as Summary,
      t.status      as Status,
      t.project     as Project,
      t.description as Description,
      t.assignee    as Assignee,
      u.firstname   as AssigneeFirstname,
      u.lastname    as AssigneeLastname,
      t.type        as Type,
      t.author      as Author,
      t.due_date    as DueDate,
      t.priority    as Priority
}

Syntax Variants

define view ZCDS_where
  as select from snwd_so as so
    left outer join snwd_pd as pd
    on so.buy_contact_guid = pd.node_key
{
    so_id,
    pd.product_id,
    ...
}

define view ZCDS_where
  as select
    so_id,
    pd.product_id
    ...
  from snwd_so as so
    left outer join snwd_pd as pd
    on so.buy_contact_guid = pd.node_key

Annotation Levels

Annotation always appears before the annotated element.

On CDS Views

@EndUserText.label: 'Extractor for SO Data'
@Analytics.dataExtraction.enabled : true

Parameters

@EndUserText.label: 'Language'
@Environment.systemField: #SYSTEM_LANGUAGE

Fields

@Semantics.amount.currencyCode: 'CURR'
@Semantics.currencyCode: true

Annotation Syntax (2/2) – Values

<value> may be:

• Enumeration beginning with #
• String literal
• Numeric literal
• Field/association names
• true/false
• Arrays: ['a', 'b'] or objects: [{...}, {...}]

Autocomplete via Ctrl + Space in ADT.

Inheritance of Annotations

Field annotations are inherited.
View-level/parameter-level annotations are not.

Disable inheritance:

@Metadata.ignorePropagatedAnnotations: true

Default = true for view entities.

Some field annotations actually apply to the whole view:

@UI.facet

Dependency Analyzer
